Modular Spice Rack System
A sleek, expandable storage solution designed for efficiency and organization.
This modular system is designed to grow with your collection. Whether you have five spices or fifty, these components snap together to create a rigid, custom-fit organizational grid for your kitchen.

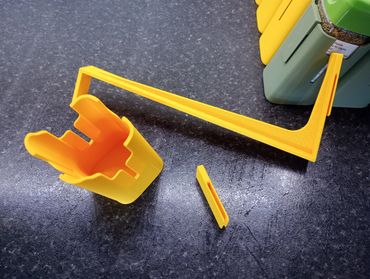

System Components

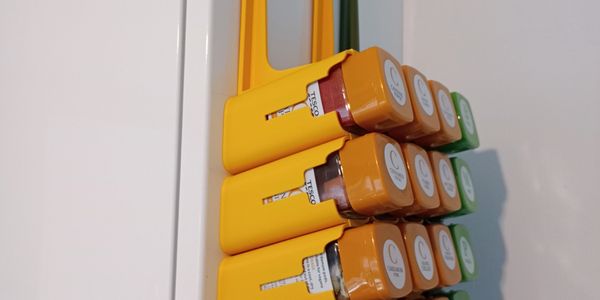

- The Main Body: Engineered to fit standard Tesco spice containers (base dimensions: 42mm x 42mm).
- Standard Clip: The structural backbone of the system; used to secure multiple bodies together into a single, rigid unit.
- Label Clip: Offers the same secure connection as the standard clip but features an integrated faceplate for 14mm x 40mm labels.
- Cornice Hanger: Designed to utilize "dead space" by clipping over your cupboard cornice.
- Gap Width: 26mm
- Drop Length: 200mm
Assembly & Printing Tips

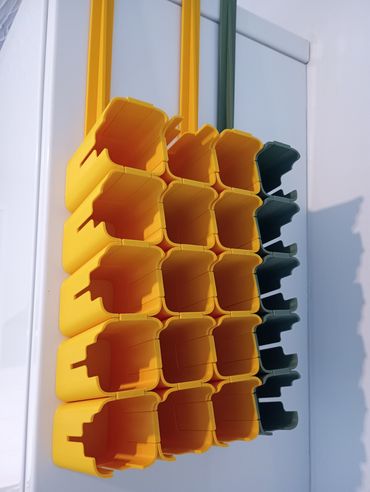

Expandability The system is fully modular. For maximum stability, we recommend using the Standard Clips to join columns together, ensuring the rack remains rigid even when fully loaded.
Printing Instructions The provided print file contains all components pre-oriented for optimal strength and finish.
- Identify the clip style you prefer (Standard or Label).
- Delete the clip version you do not require before sending the job to your printer.
